Hickory Gear Racks
P R O D U C T ∙ D E T A I L S

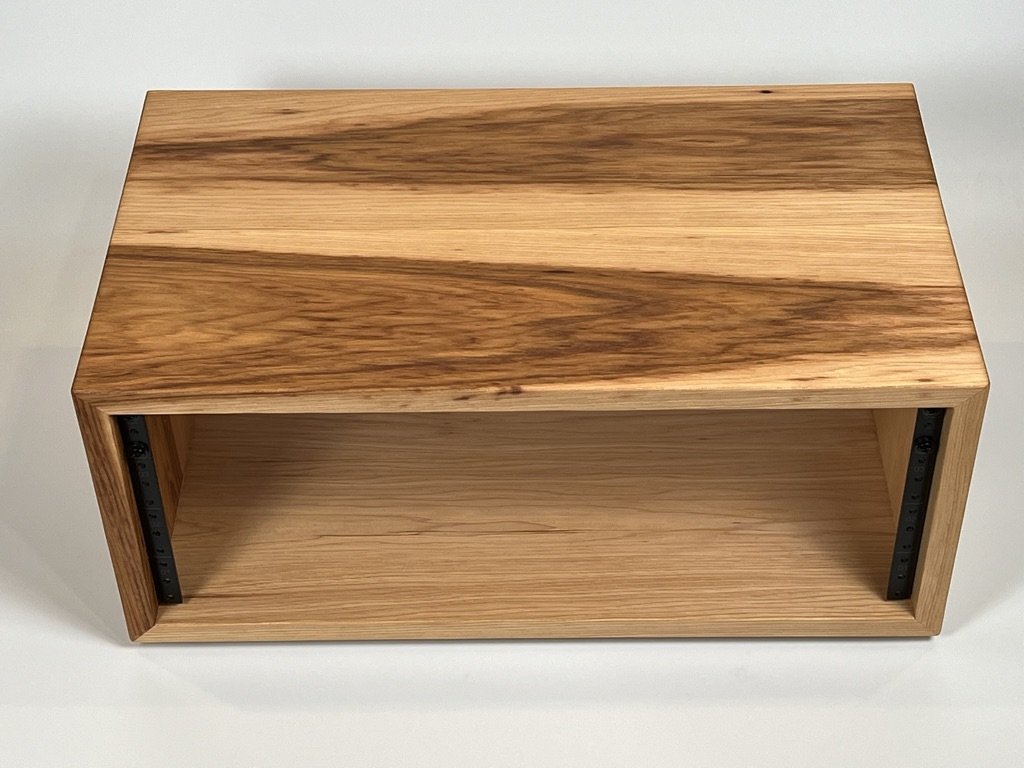

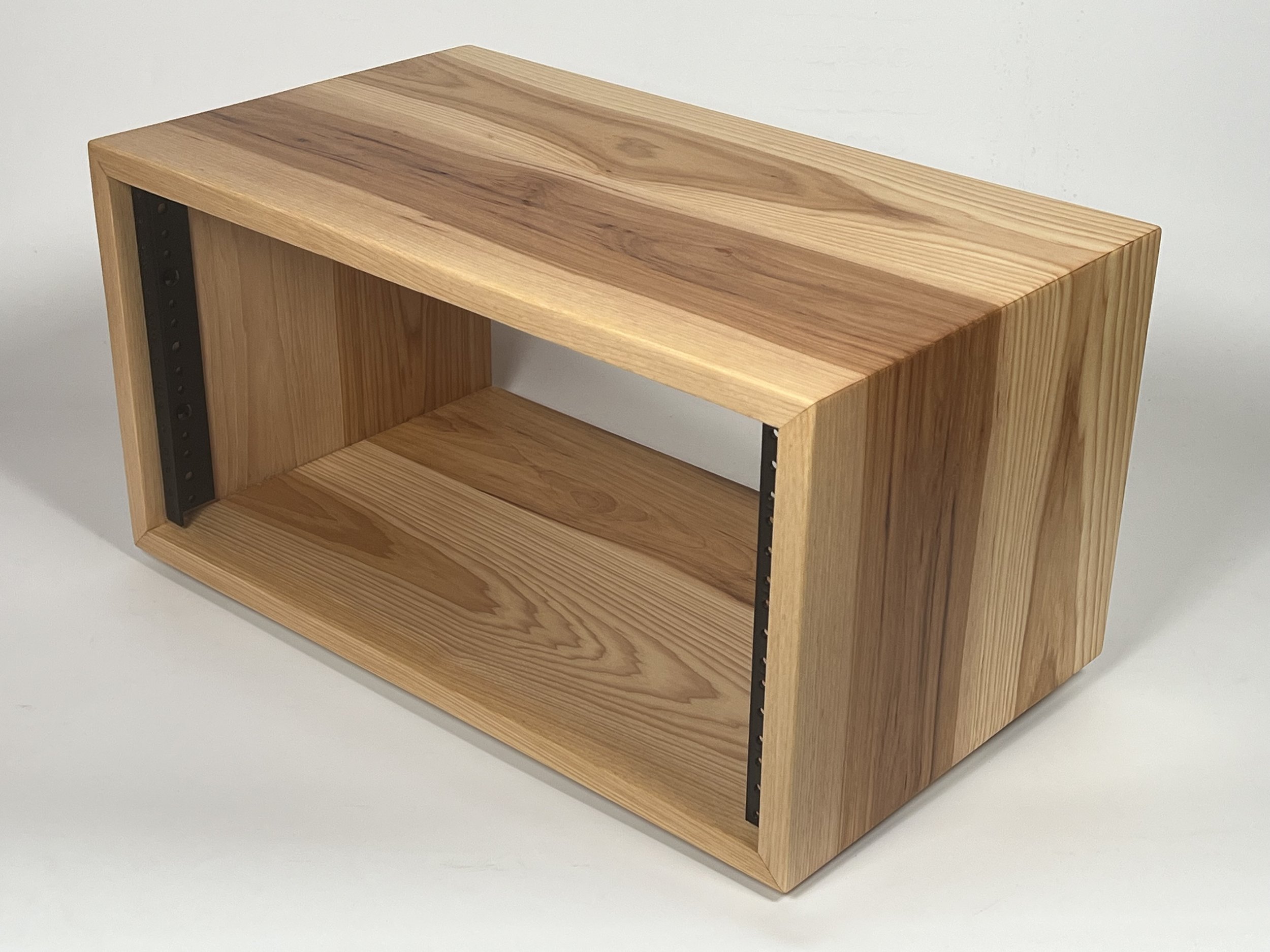

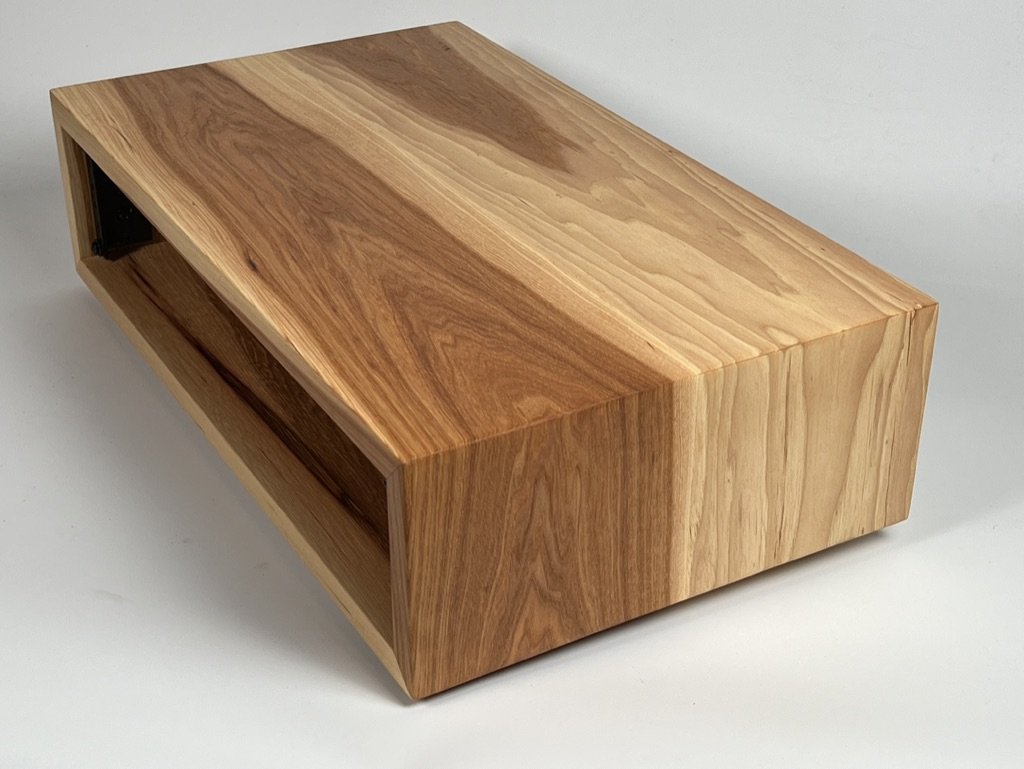

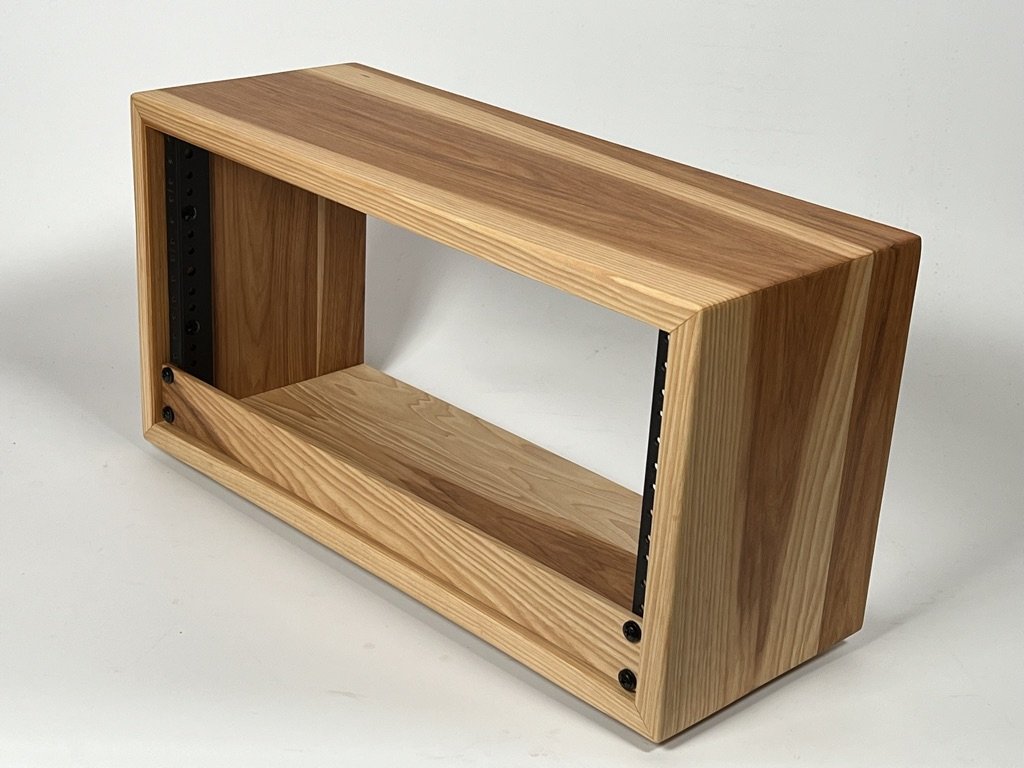

If you’re looking for an upgrade to the rack where your gear lives, we’re offering premium grade 19” racks, constructed from solid hickory lumber.

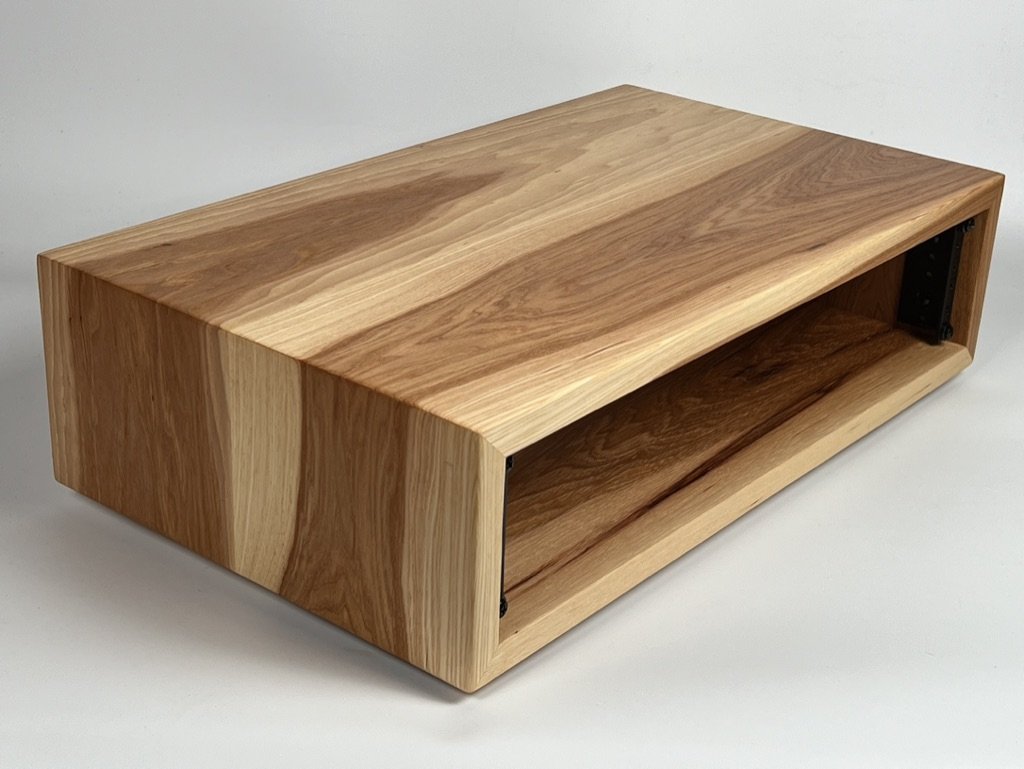

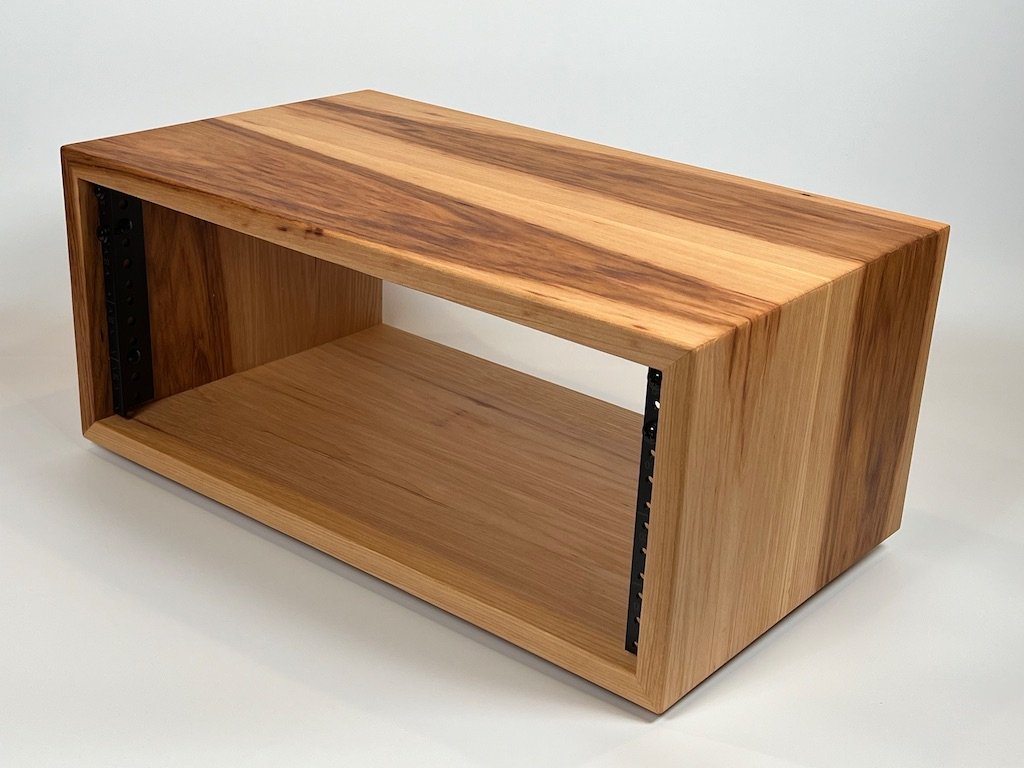

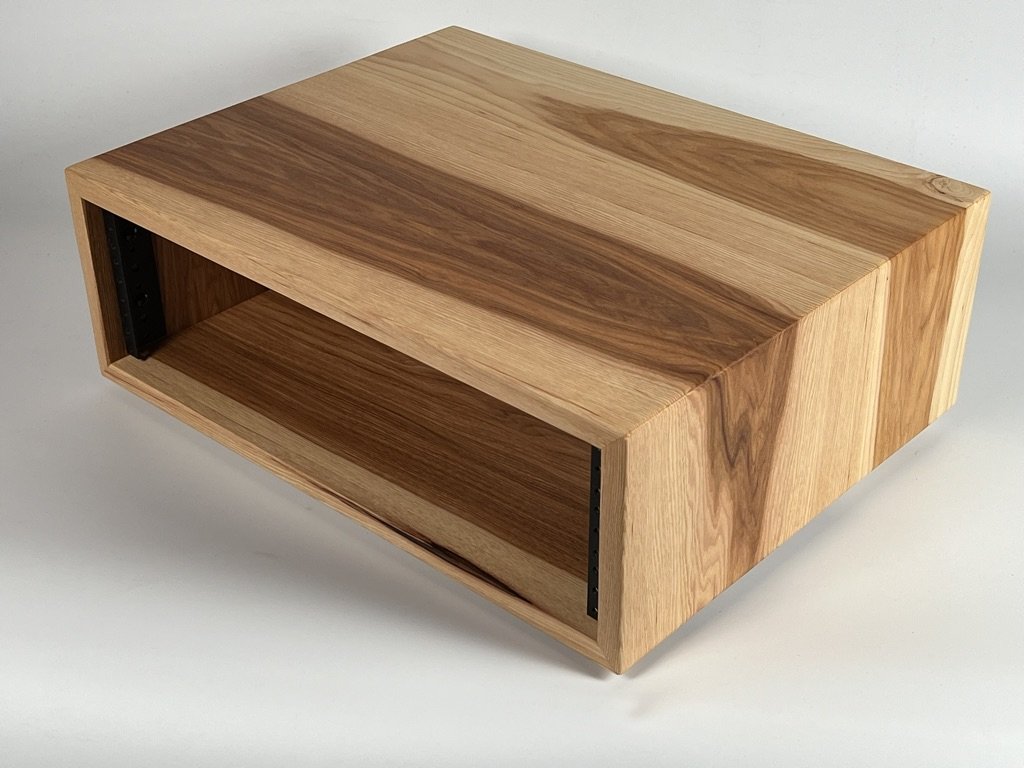

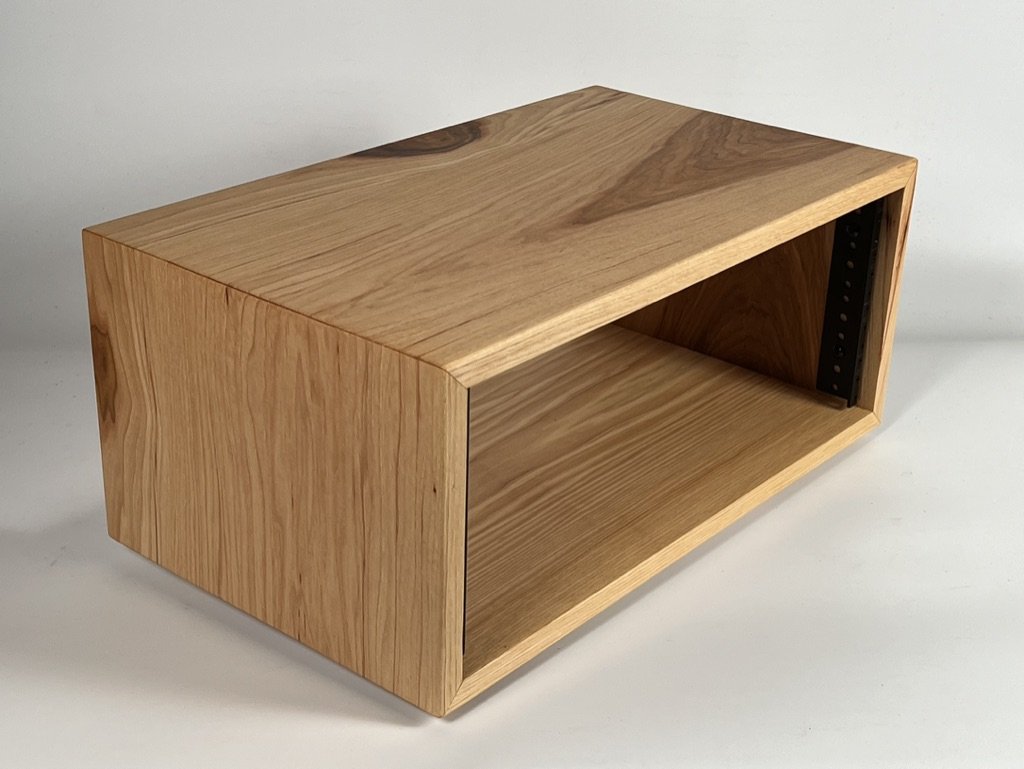

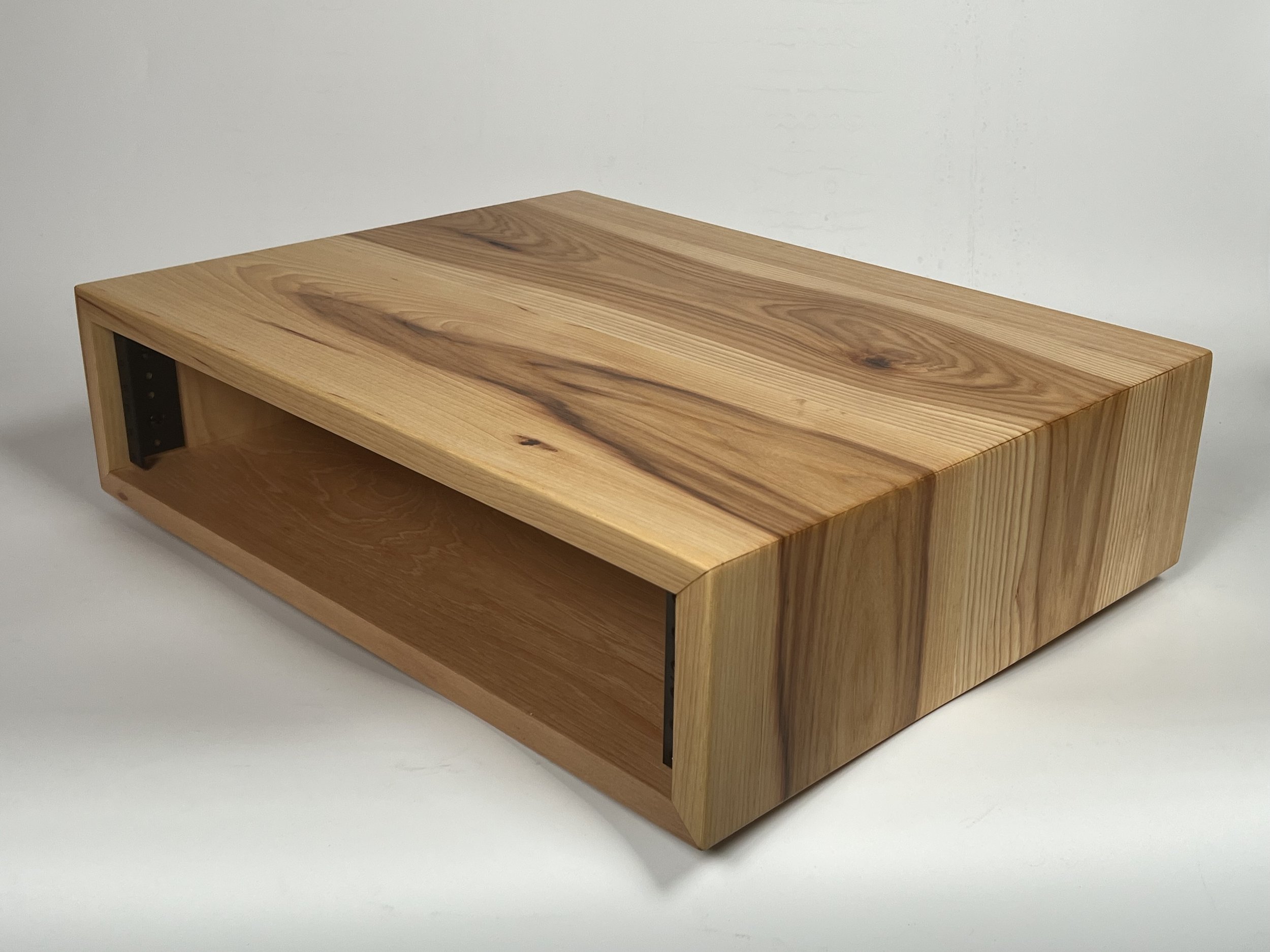

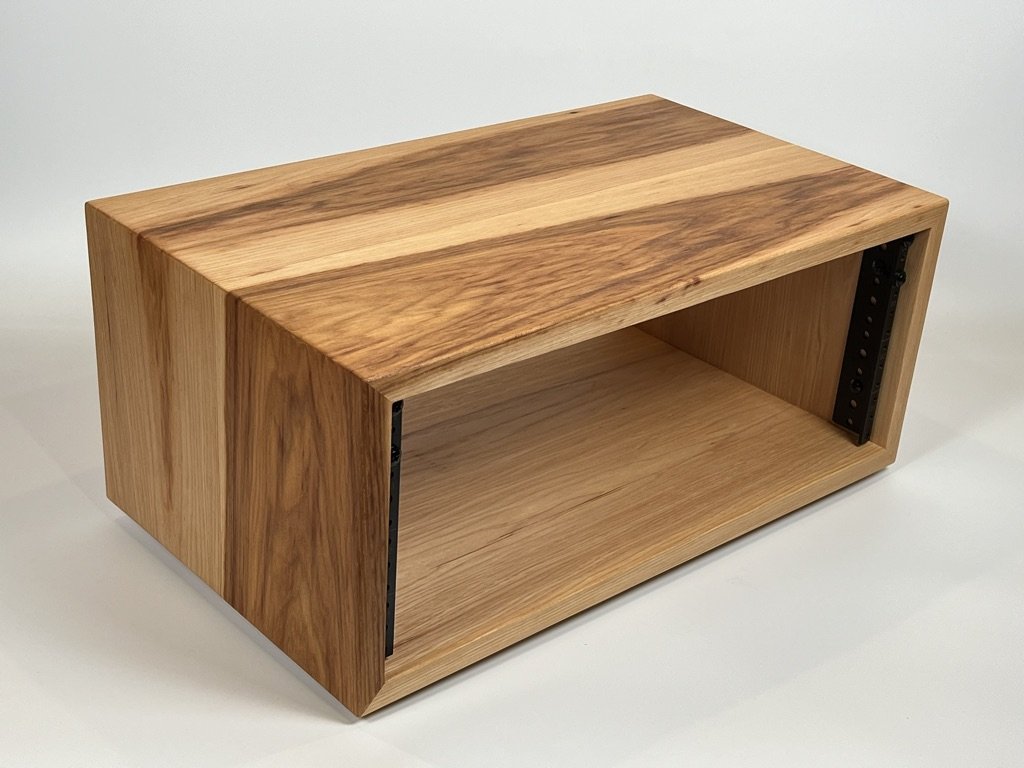

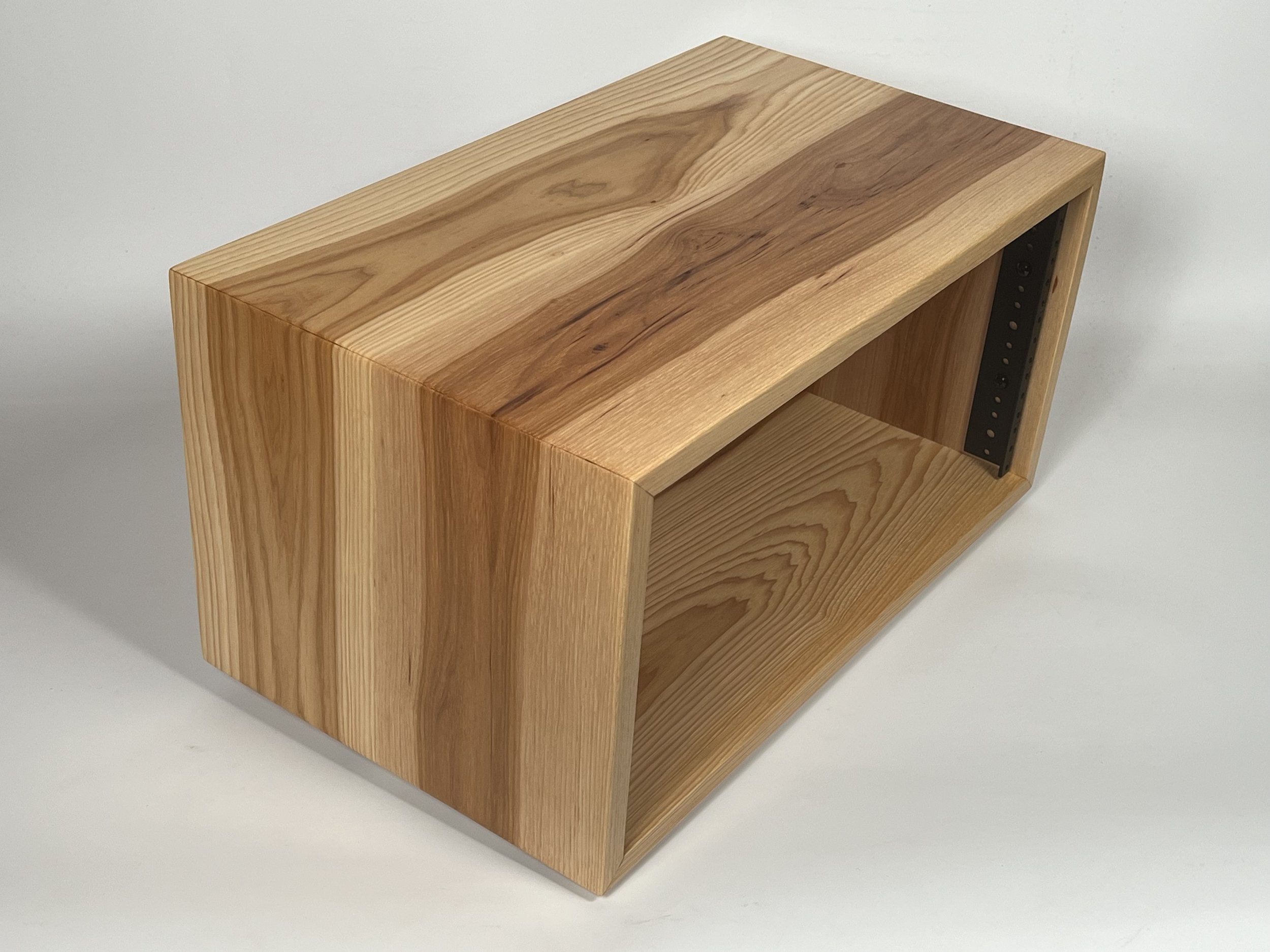

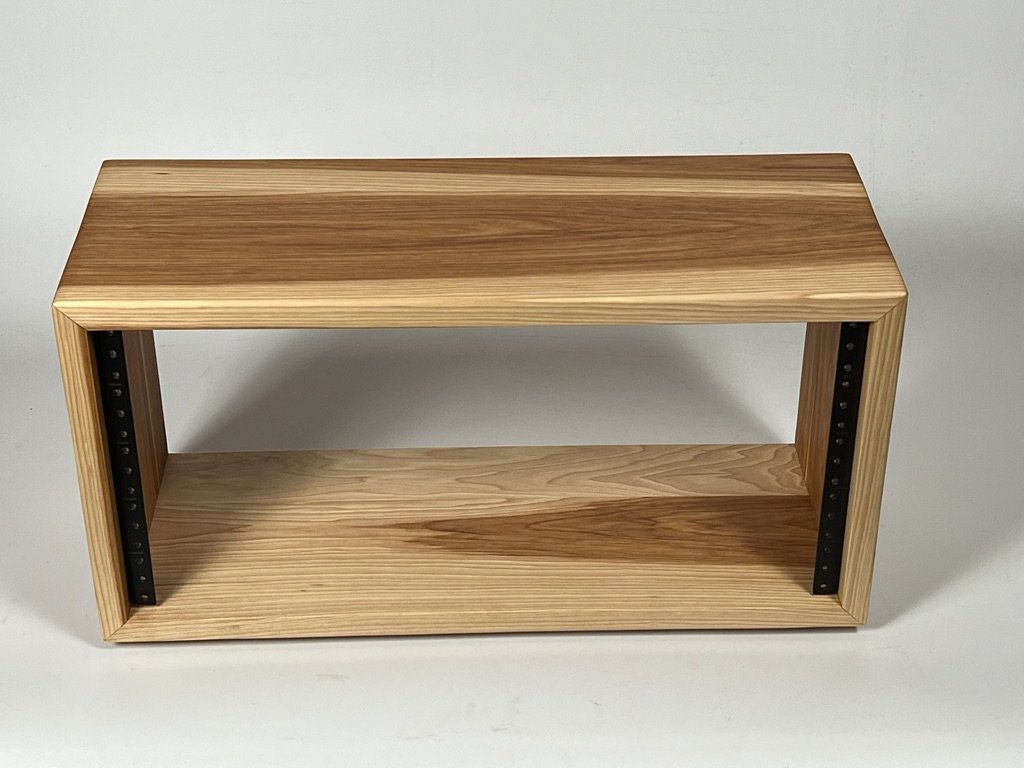

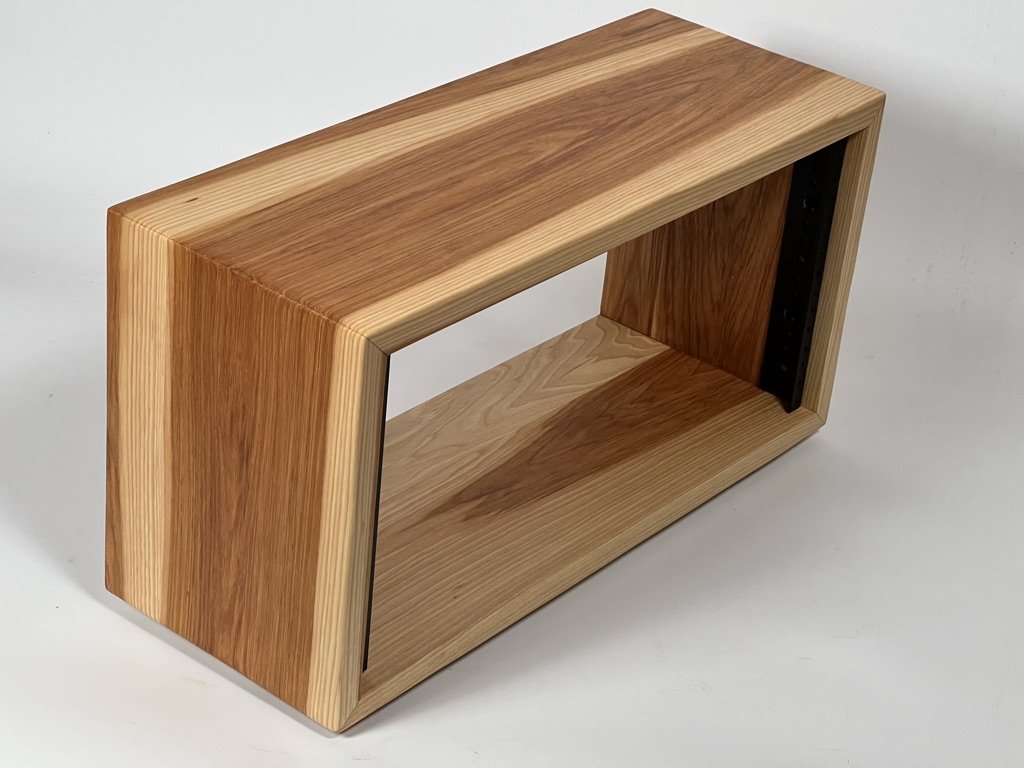

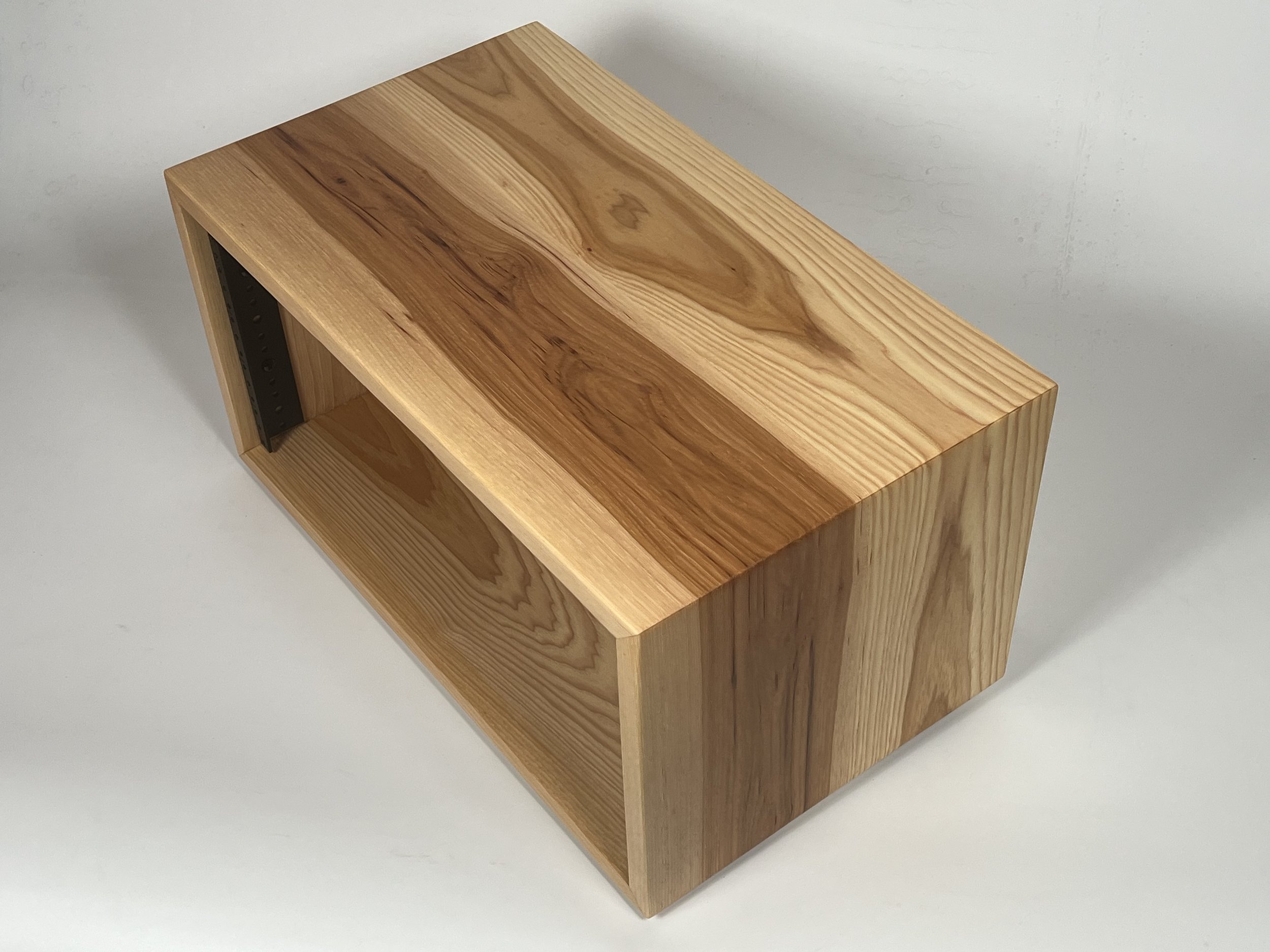

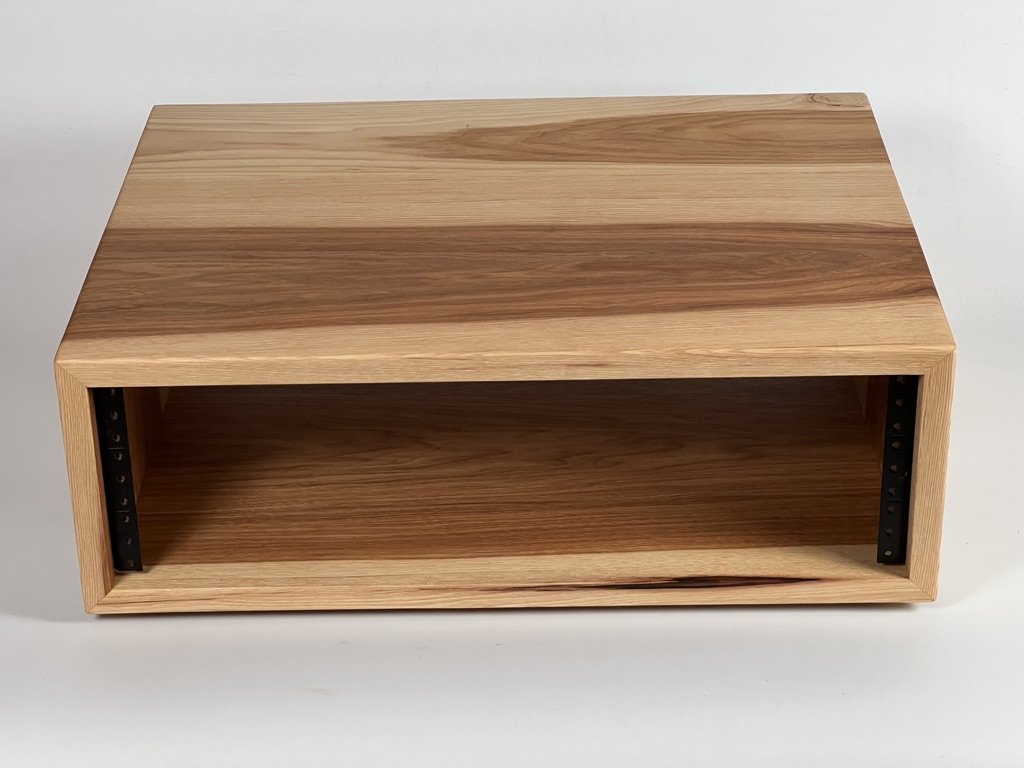

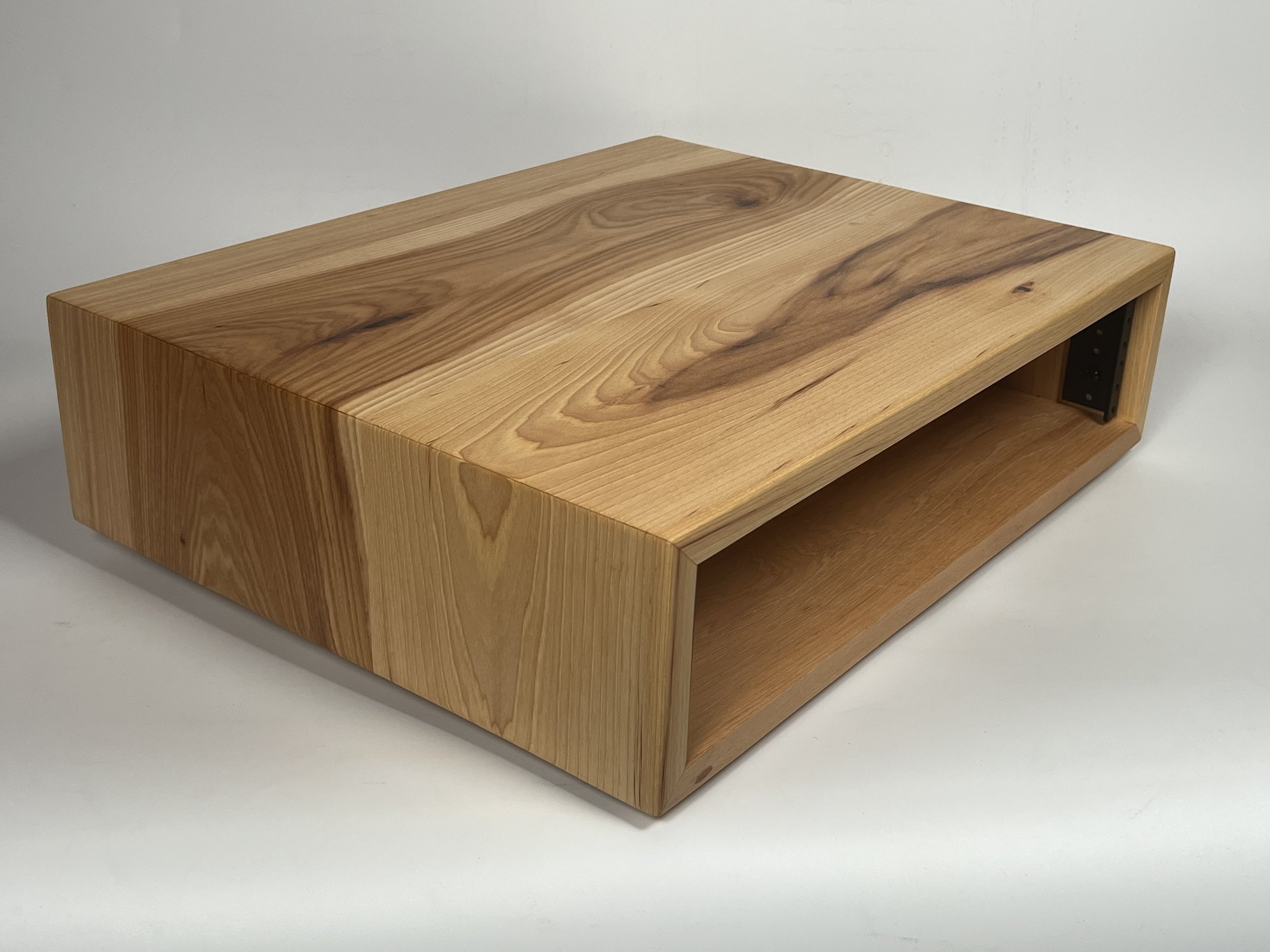

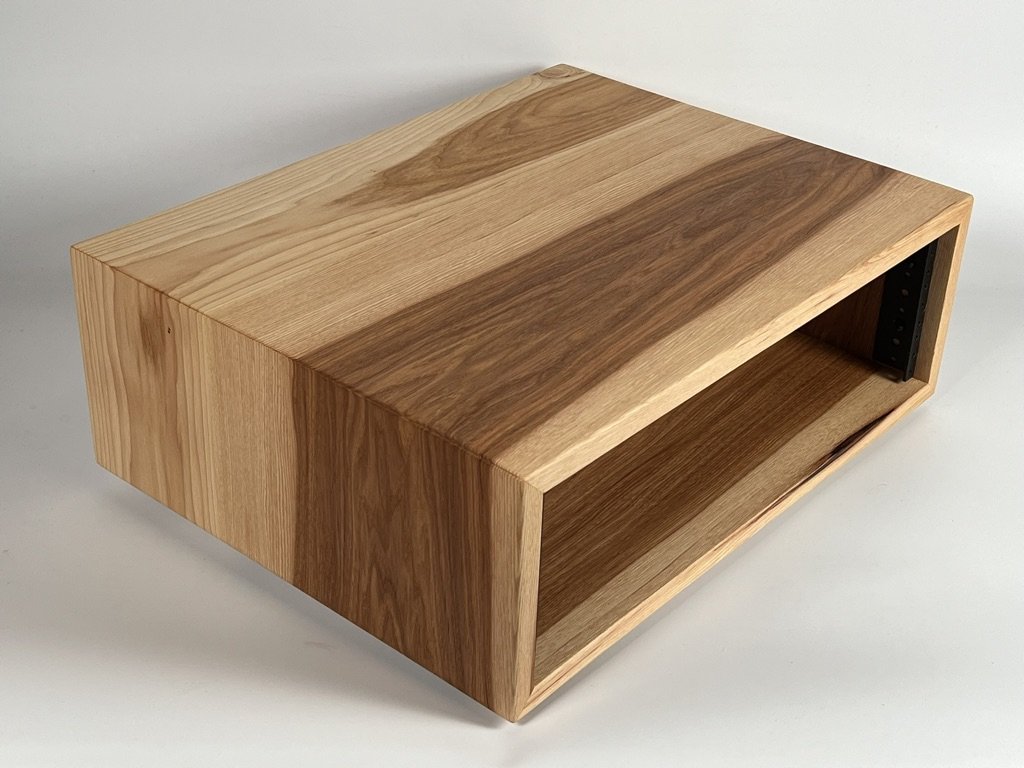

We use a continuous plank across the side/top/side, and miter the edges, to create a waterfall effect in the wood grain. Pick the rack unit capacity you need, and the depth of the cabinet, and we’ll be glad to build it for you. If you need a custom size, or would like to explore other woods such as maple, cherry, or oak, drop me a message and I’ll do what I can to accommodate your request.
P R O D U C T ∙ D E T A I L S
If you’re looking for an upgrade to the rack where your gear lives, we’re offering premium grade 19” racks, constructed from solid hickory lumber.
We use a continuous plank across the side/top/side, and miter the edges, to create a waterfall effect in the wood grain. Pick the rack unit capacity you need, and the depth of the cabinet, and we’ll be glad to build it for you. If you need a custom size, or would like to explore other woods such as maple, cherry, or oak, drop me a message and I’ll do what I can to accommodate your request.
P R O D U C T ∙ D E T A I L S
If you’re looking for an upgrade to the rack where your gear lives, we’re offering premium grade 19” racks, constructed from solid hickory lumber.
We use a continuous plank across the side/top/side, and miter the edges, to create a waterfall effect in the wood grain. Pick the rack unit capacity you need, and the depth of the cabinet, and we’ll be glad to build it for you. If you need a custom size, or would like to explore other woods such as maple, cherry, or oak, drop me a message and I’ll do what I can to accommodate your request.

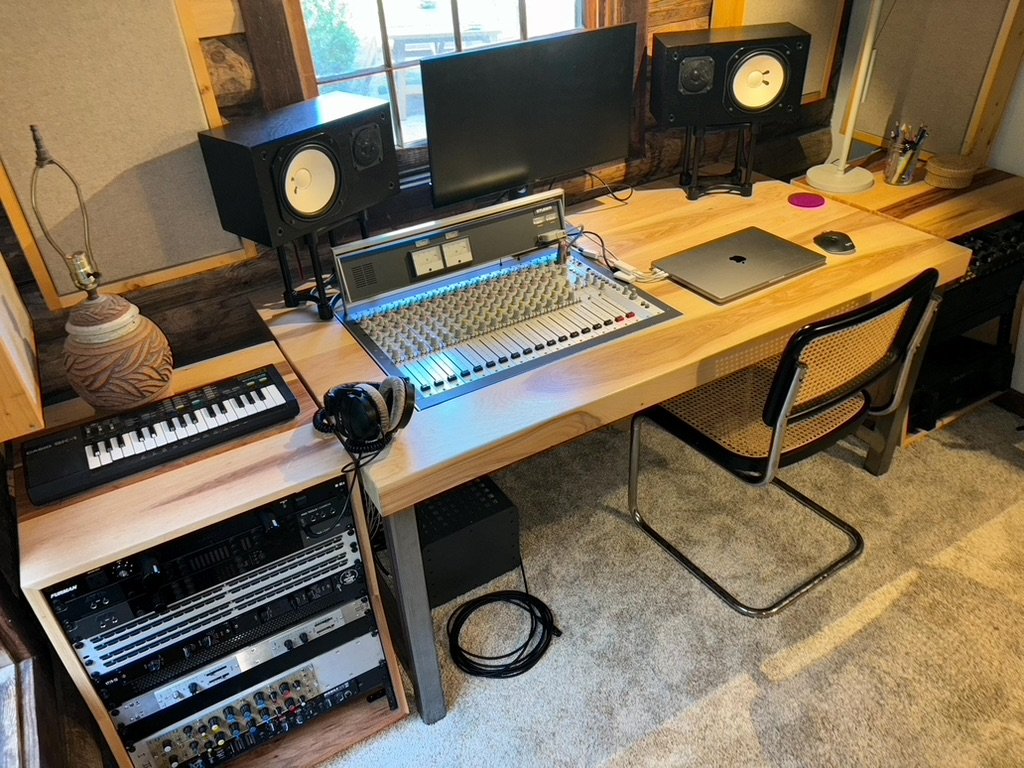

Perfect for all rack-mount equipment, whether yours is:
• audio gear
• video gear
• network devices
• server cases
• a mix of any of the above
S I Z E ∙ O P T I O N S
• 1U to 16U (rack units) tall
• 8, 12, 16, or 20 inches deep
• standard 19" rack mount width
• for detailed cabinet dimensions, scroll to bottom
C O N S T R U C T I O N ∙ D E T A I L S
• constructed from 3/4" solid hickory lumber

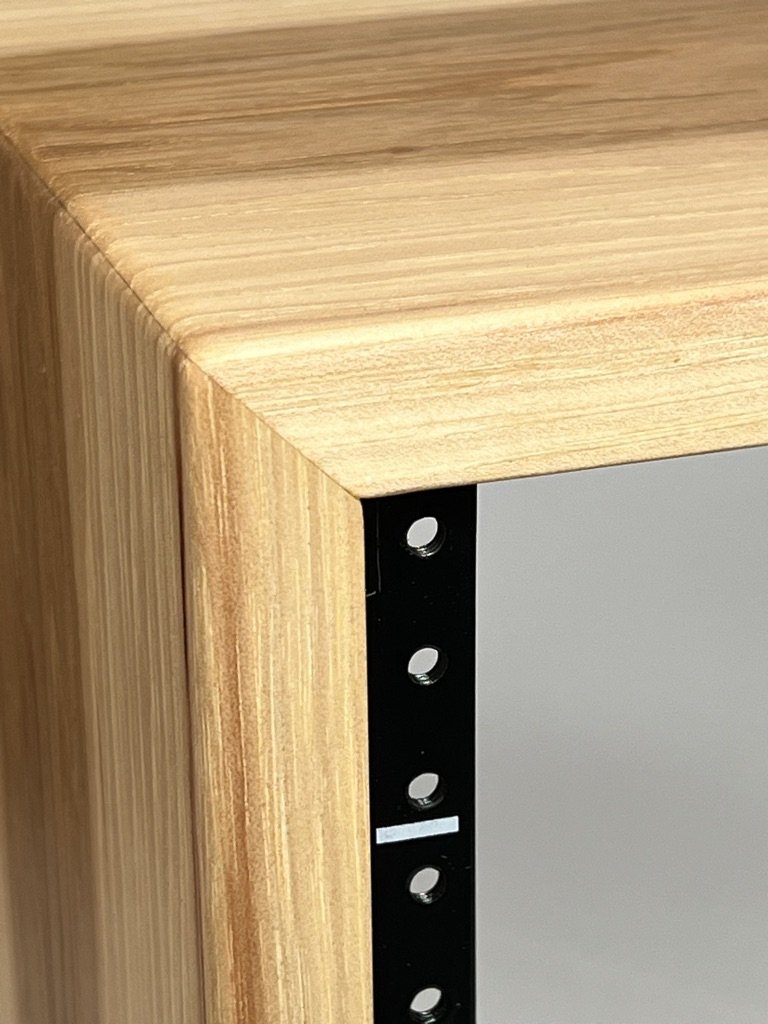

• all sides are joined with a 45 degree miter, making the seam almost disappear
• front and top edges are eased to about 1/8" radius
• bottom is fitted with non-marring rubber feet, but can be omitted or upgraded to adjustable levelers (see link below).
• rack rails are recessed 1/2" from the front edge of the cabinet sides, and spaced 1/8" from the top and bottom
• comes fully assembled and ready to use
F I N I S H I N G ∙ P R O C E S S
Our multi-stage finishing process uses all natural products (known as zero-VOC), highlighting the contrasting grain that makes hickory wood so popular for furniture building.
• hand rubbed with an all natural Danish oil
• primary ingredients are linseed oil and bees wax
• enhances the grain and natural dark pigment
• eliminates harmful and irritating vapors and fumes
• results in a satin sheen
U P G R A D E S ∙ A D D - O N S
We also offer a number of add-ons and upgrades to take your rack to the next level:
• rear rails
• extra screws (4 are always included for free with your rack order)
• square-hole rails and cage nuts
• matching wood filler panels
• blank filler panels
• vented filler panels
• venting slots directly in the wood
• locking caster wheels
• shelves
• leveling feet
• back-plane power distribution units

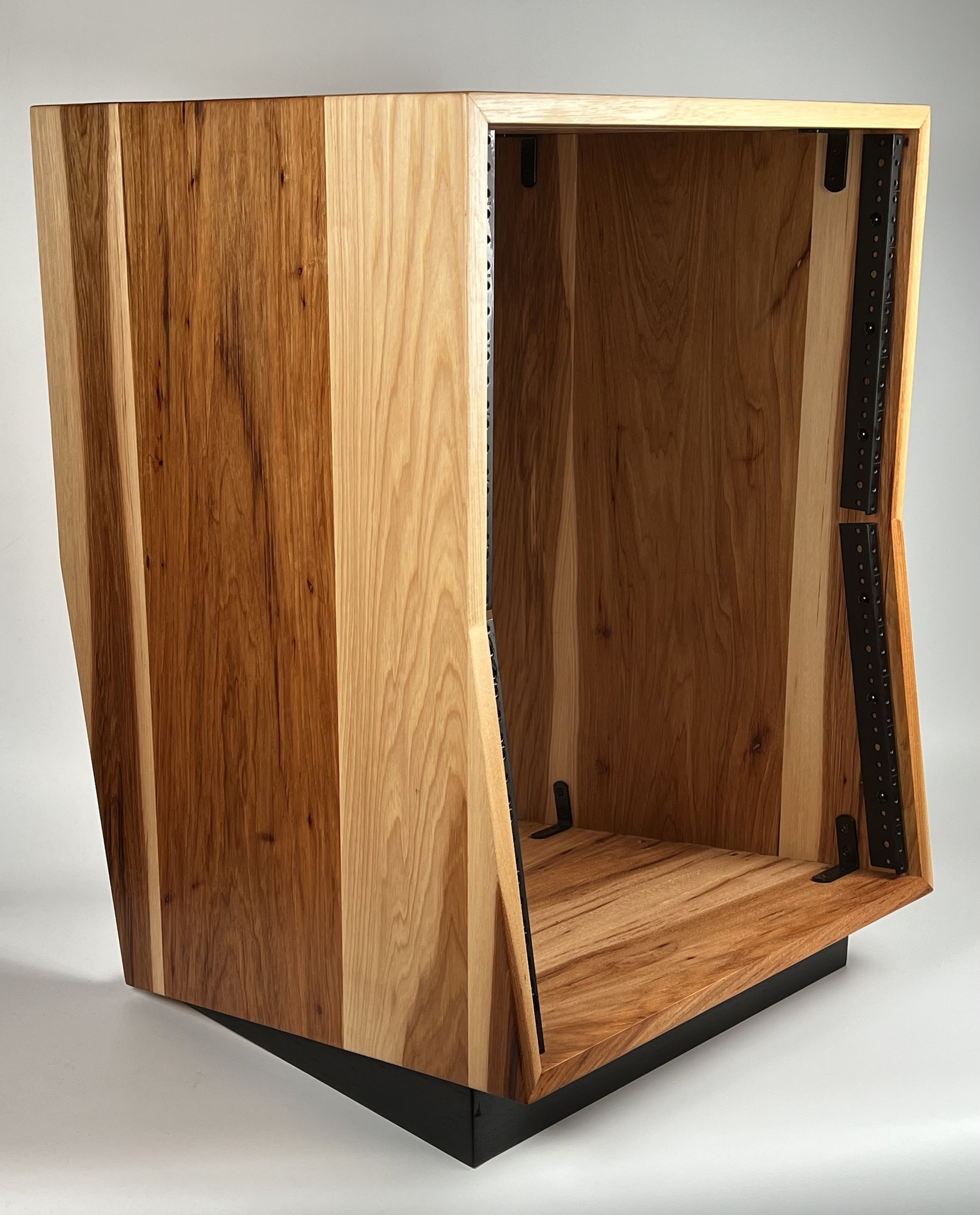

C U S T O M ∙ R E Q U E S T S
If you don't see the setup size you need in the drop-downs above, send me a message with your request and I'll do what I can to accommodate you. Ask about availability of other types of wood. I have local access to over 100 domestic and exotic wood species, so almost anything is possible.
S H I P P I N G
Shipping is FREE to the 48 contiguous United States. Alaska and Hawaii customers will have a $100 shipping charge added at checkout.
Thanks for stopping by.
C A B I N E T ∙ D I M E N S I O N S
• width for all sizes - 20-5/8"
• depth, front to back - 8, 12, 16, or 20 inches deep
• height of cabinet (excluding optional rubber feet)
• 1U - 3.5"
• 2U - 5.25"
• 3U - 7"
• 4U - 8.75"
• 5U - 10.5"
• 6U - 12.25"
• 8U - 15.75"
• 10U - 19.25"
• 12U - 22.75"
• 14U - 26.25"
• 16U - 29.75"
